USB transceiver IC featuring a single channel and 12Mbps data rate. This surface mount component offers I2C, USB, and UART interfaces with integrated ESD protection. Operating within a 2.7V to 5.5V supply voltage range, it supports a 3.3V operating supply voltage and 17mA operating current. Packaged in a 24-pin QFN (4.1mm x 4.1mm x 0.95mm) on tape and reel, this lead-free, RoHS compliant device operates from -40°C to 85°C.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STOTG04EQTR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Height | 0.95mm |
| Interface | I2C, USB, UART |
| Lead Free | Lead Free |
| Length | 4.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 17mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STOTG04EQTR Datasheet
Download the complete datasheet for Stmicroelectronics STOTG04EQTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

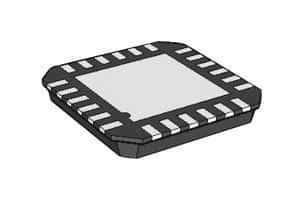

Product Images
