N-channel power MOSFET featuring 500V drain-source breakdown voltage and 12A continuous drain current. Offers a low 300mOhm typical drain-source on-resistance. Encased in a TO-220 package for through-hole mounting, this RoHS compliant component operates from -65°C to 150°C with a maximum power dissipation of 160W.
PackageTO-220
Current Rating12A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STP12NM50 technical specifications.
General
Package/Case
TO-220
Continuous Drain Current (ID)
12A
Current Rating
12A
Drain to Source Breakdown Voltage
500V
Drain to Source Resistance
350mR
Drain to Source Voltage (Vdss)
500V
Drain-source On Resistance-Max
350mR
Gate to Source Voltage (Vgs)
30V
Height
9.15mm
Input Capacitance
1nF
Lead Free
Lead Free
Length
10.4mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
160W
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
1
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
160W
Radiation Hardening
No
Rds On Max
350mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MDmesh™
Threshold Voltage
4V
Turn-On Delay Time
20ns
DC Rated Voltage
500V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STP12NM50 Datasheet
Download the complete datasheet for Stmicroelectronics STP12NM50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

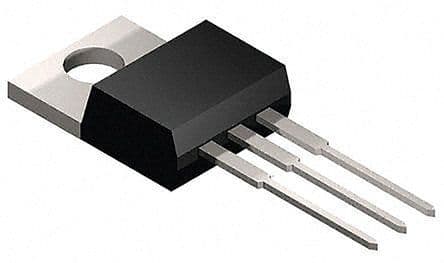

Product Images
