N-Channel POWER MOSFET featuring 500V drain-to-source breakdown voltage and 14A continuous drain current. Offers low 380mR drain-to-source resistance and Zener protection. Designed for through-hole mounting in a TO-220-3 package, this SuperMESH™ device boasts fast switching speeds with a 24ns turn-on delay and 12ns fall time. Maximum power dissipation is 35W, with operating temperatures ranging from -55°C to 150°C.
PackageTO-220-3
MountingThrough Hole
PolarityN-CHANNEL
Power35W
Quick Jump:
Technical Specifications
Stmicroelectronics STP14NK50ZFP technical specifications.
General
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 14A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 380mR |
| Drain to Source Voltage (Vdss) | 500V |
| Fall Time | 12ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 9.3mm |
| Input Capacitance | 2nF |
| Length | 10.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 35W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 35W |
| Rds On Max | 380mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SuperMESH™ |
| Threshold Voltage | 3.75V |
| Turn-Off Delay Time | 54ns |
| Turn-On Delay Time | 24ns |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STP14NK50ZFP Datasheet
Download the complete datasheet for Stmicroelectronics STP14NK50ZFP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

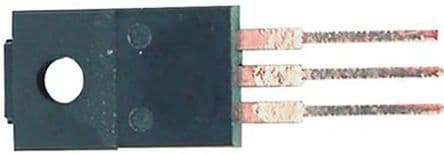

Product Images
