N-channel Power MOSFET featuring 1500V drain-source breakdown voltage and 4A continuous drain current. This through-hole component offers a typical 5 Ohm drain-source on-resistance, with a maximum of 7 Ohm. Operating within a -55°C to 150°C temperature range, it dissipates up to 160W and includes a 4V threshold voltage. The TO-220 package facilitates easy mounting, and the device is RoHS compliant.
PackageTO-220
Current Rating4A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STP4N150 technical specifications.
General
Package/Case
TO-220
Continuous Drain Current (ID)
4A
Current Rating
4A
Drain to Source Breakdown Voltage
1.5kV
Drain to Source Resistance
5R
Drain to Source Voltage (Vdss)
1.5kV
Drain-source On Resistance-Max
7R
Fall Time
45ns
Gate to Source Voltage (Vgs)
30V
Height
15.75mm
Input Capacitance
1.3nF
Lead Free
Lead Free
Length
10.4mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
160W
Mount
Through Hole
Number of Elements
1
Package Quantity
50
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
160W
Radiation Hardening
No
Rds On Max
7R
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerMESH™
Threshold Voltage
4V
Turn-Off Delay Time
45ns
Turn-On Delay Time
35ns
DC Rated Voltage
1.5kV
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STP4N150 Datasheet
Download the complete datasheet for Stmicroelectronics STP4N150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

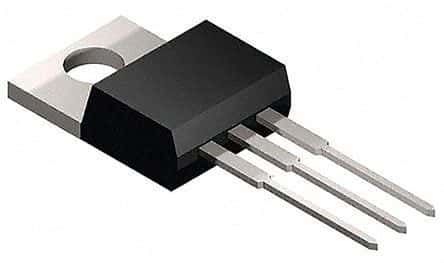

Product Images
