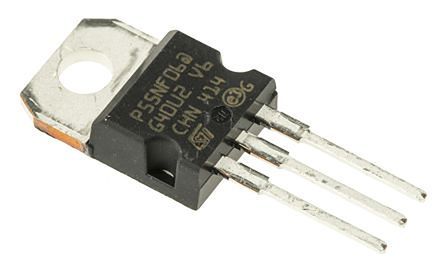

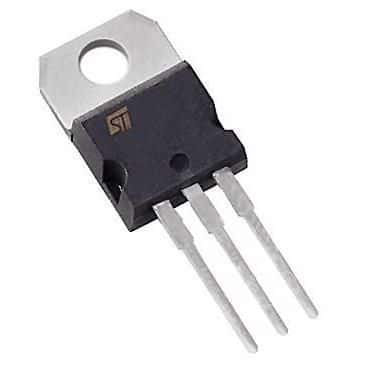

N-channel power MOSFET featuring 60V drain-source breakdown voltage and 50A continuous drain current. This component offers a low 18mΩ drain-source on-resistance and 110W maximum power dissipation. Designed for through-hole mounting in a TO-220 package, it operates within a -55°C to 175°C temperature range. Key switching characteristics include a 20ns turn-on delay and 36ns turn-off delay.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STP55NF06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics STP55NF06 technical specifications.
| Package/Case | TO-220 |
| Continuous Drain Current (ID) | 50A |
| Current Rating | 50A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 18mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 18mR |
| Dual Supply Voltage | 60V |
| Fall Time | 15ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 9.15mm |
| Input Capacitance | 1.3nF |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 110W |
| Mount | Through Hole |
| Nominal Vgs | 3V |
| Number of Elements | 1 |
| On-State Resistance | 18mR |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 110W |
| Radiation Hardening | No |
| Rds On Max | 18mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STripFET™ II |
| Threshold Voltage | 3V |
| Turn-Off Delay Time | 36ns |
| Turn-On Delay Time | 20ns |
| DC Rated Voltage | 60V |
| Width | 4.6mm |
| RoHS | Compliant |
