N-channel Power MOSFET featuring 60V drain-source breakdown voltage and 55A continuous drain current. Offers low 14mΩ typical drain-source on-resistance and 18mΩ maximum. Designed for through-hole mounting in a TO-220 package, this component boasts a maximum power dissipation of 95W and operates across a wide temperature range from -55°C to 175°C. Includes fast switching characteristics with 20ns turn-on and 40ns turn-off delay times.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STP55NF06L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

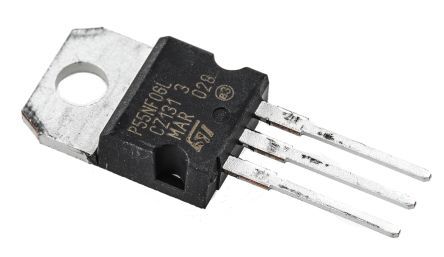

Stmicroelectronics STP55NF06L technical specifications.
| Package/Case | TO-220 |
| Continuous Drain Current (ID) | 55A |
| Current Rating | 55A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 14mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 18mR |
| Fall Time | 20ns |
| Gate to Source Voltage (Vgs) | 16V |
| Height | 9.15mm |
| Input Capacitance | 1.7nF |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 95W |
| Mount | Through Hole |
| Nominal Vgs | 1.7V |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 95W |
| Radiation Hardening | No |
| Rds On Max | 18mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STripFET™ II |
| Threshold Voltage | 1.7V |
| Turn-Off Delay Time | 40ns |
| Turn-On Delay Time | 20ns |
| DC Rated Voltage | 60V |
| Width | 4.6mm |
| RoHS | Compliant |
Download the complete datasheet for Stmicroelectronics STP55NF06L to view detailed technical specifications.
