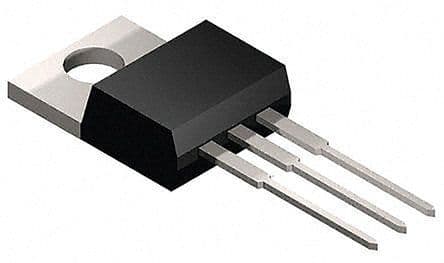

N-channel SuperMESH3™ Power MOSFET, 1000V drain-source breakdown voltage, 3.5A continuous drain current, and 3.7 Ohm maximum drain-source on-resistance. This through-hole component features a TO-220 package, 125W maximum power dissipation, and operates within a -55°C to 150°C temperature range. Key switching characteristics include a 22.5ns turn-on delay, 19ns fall time, and 51.5ns turn-off delay.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STP5NK100Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Continuous Drain Current (ID) | 3.5A |
| Current Rating | 3.5A |
| Drain to Source Breakdown Voltage | 1kV |
| Drain to Source Resistance | 3.7R |
| Drain to Source Voltage (Vdss) | 1kV |
| Drain-source On Resistance-Max | 3.7R |
| Fall Time | 19ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 9.15mm |
| Input Capacitance | 1.154nF |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 125W |
| Rds On Max | 3.7R |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SuperMESH3™ |
| Threshold Voltage | 3.75V |
| Turn-Off Delay Time | 51.5ns |
| Turn-On Delay Time | 22.5ns |
| DC Rated Voltage | 1kV |
| Width | 4.6mm |
| RoHS | Compliant |
