N-channel power MOSFET featuring 75V drain-source breakdown voltage and 80A continuous drain current. This STripFET™ II device offers a low 9.5mΩ typical drain-source on-resistance and 11mΩ maximum. Housed in a TO-220 package for through-hole mounting, it supports a maximum power dissipation of 300W and operates from -55°C to 175°C. Key switching characteristics include a 25ns turn-on delay and 30ns fall time.
PackageTO-220
Current Rating80A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STP75NF75 technical specifications.
General
Package/Case
TO-220
Continuous Drain Current (ID)
80A
Current Rating
80A
Drain to Source Breakdown Voltage
75V
Drain to Source Resistance
9.5mR
Drain to Source Voltage (Vdss)
75V
Drain-source On Resistance-Max
11mR
Fall Time
30ns
Gate to Source Voltage (Vgs)
20V
Height
9.15mm
Input Capacitance
3.7nF
Lead Free
Lead Free
Length
10.4mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
300W
Mount
Through Hole
Number of Elements
1
Package Quantity
1000
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
300W
Radiation Hardening
No
Rds On Max
11mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STripFET™ II
Threshold Voltage
3V
Turn-Off Delay Time
66ns
Turn-On Delay Time
25ns
DC Rated Voltage
75V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STP75NF75 Datasheet
Download the complete datasheet for Stmicroelectronics STP75NF75 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

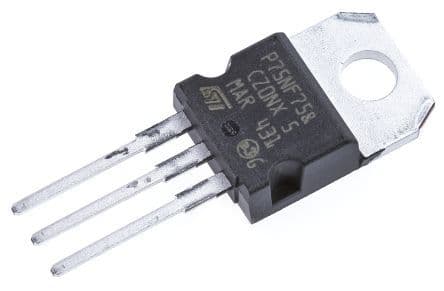

Product Images
