8-bit serial-in, serial/parallel-out shift register IC, featuring 100mA output current per channel and a 5V operating supply voltage. This unidirectional CMOS device offers a 130ns propagation delay and operates within a -40°C to 125°C temperature range. Packaged in a 16-pin SO surface mount configuration, it supports 4.5V to 5.5V supply voltage and is RoHS compliant.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPIC6C595MTR technical specifications.
General
| Package/Case | SO |
| Direction | Unidirectional |
| Logic Function | Shift Register |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 16 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 9 |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 100mA |
| Output Voltage | 4.49V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 130ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 5kHz |
| Technology | CMOS |
| Turn-On Delay Time | 130ns |
| Weight | 0.007079oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPIC6C595MTR Datasheet
Download the complete datasheet for Stmicroelectronics STPIC6C595MTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

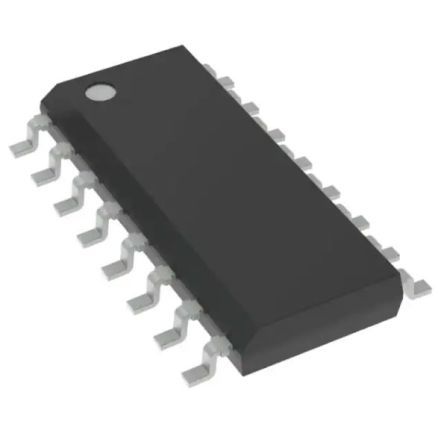

Product Images
