Surface mount power Schottky rectifier with a maximum repetitive reverse voltage of 20V and an average rectified current of 500mA. Features a maximum forward current of 500mA and a peak non-repetitive surge current of 5.5A. Operating temperature range spans from -65°C to 125°C. This RoHS compliant component has a maximum reverse leakage current of 150µA. Dimensions are 2.85mm length, 1.7mm width, and 1.35mm height.
Current Rating500mA
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS0520Z technical specifications.
General
| Average Rectified Current | 500mA |
| Current Rating | 500mA |
| Forward Current | 500mA |
| Height | 1.35mm |
| Lead Free | Lead Free |
| Length | 2.85mm |
| Max Forward Surge Current (Ifsm) | 5.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 20V |
| Max Reverse Current | 150uA |
| Max Reverse Leakage Current | 150uA |
| Max Reverse Voltage (DC) | 20V |
| Max Surge Current | 5.5A |
| Mount | Surface Mount |
| Output Current | 500mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 5.5A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 20V |
| Width | 1.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS0520Z Datasheet
Download the complete datasheet for Stmicroelectronics STPS0520Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

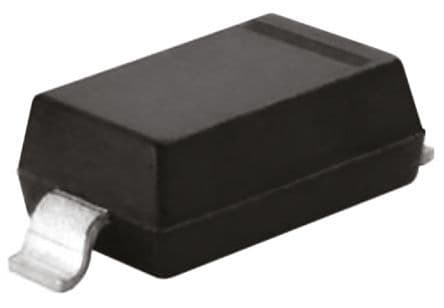

Product Images
