The STPS10150CG-TR is a general purpose rectifier diode with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 150V and a maximum reverse current of 2uA. The diode is packaged in a D2PAK case and is suitable for surface mount applications. It is lead free and RoHS compliant.
PackageD2PAK
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPS10150CG-TR technical specifications.
General
| Average Rectified Current | 5A |
| Package/Case | D2PAK |
| Current Rating | 5A |
| Forward Current | 10A |
| Height | 9.35mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 150V |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Max Reverse Voltage (DC) | 150V |
| Max Surge Current | 120A |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 120A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 150V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS10150CG-TR Datasheet
Download the complete datasheet for Stmicroelectronics STPS10150CG-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

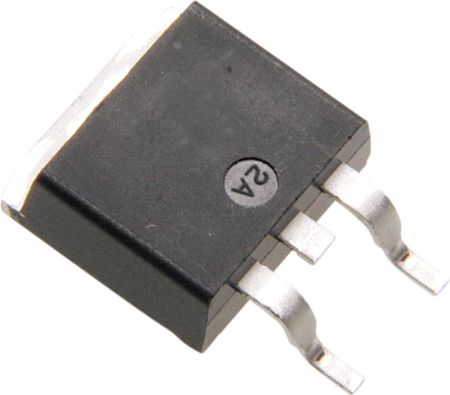

Product Images
