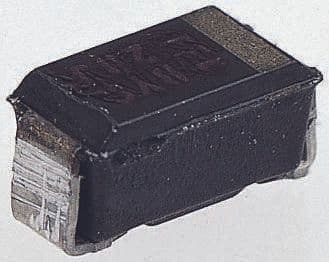

1A Surface Mount Power Schottky Rectifier with a 40V repetitive reverse voltage rating. Features a 1A average rectified current and 60A peak non-repetitive surge current. Operates from -65°C to 150°C with a low reverse leakage current of 12uA. Packaged in SMB for tape and reel distribution, this RoHS compliant component offers 900W power dissipation.
PackageSMB
Current Rating1A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS140U technical specifications.
General
Average Rectified Current
1A
Package/Case
SMB
Current Rating
1A
Forward Current
1A
Height
2.45mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
60A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
12uA
Max Reverse Leakage Current
12uA
Max Reverse Voltage (DC)
40V
Max Surge Current
60A
Mount
Surface Mount
Output Current
1A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
60A
Polarity
Standard
Power Dissipation
900W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
40V
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS140U Datasheet
Download the complete datasheet for Stmicroelectronics STPS140U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
