15A Power Schottky Rectifier with a 45V repetitive reverse voltage rating. Features a maximum operating temperature of 175°C and a minimum of -65°C. This through-hole component offers a 220A peak non-repetitive surge current capability. Packaged in TO-220AC, it is RoHS compliant and lead-free.
PackageTO-220AC
Current Rating15A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS1545D technical specifications.
General
Average Rectified Current
15A
Package/Case
TO-220AC
Current Rating
15A
Forward Current
15A
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
220A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
45V
Max Reverse Current
200uA
Max Reverse Leakage Current
200uA
Max Reverse Voltage (DC)
45V
Max Surge Current
220A
Mount
Through Hole
Output Current
15A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
220A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
45V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS1545D Datasheet
Download the complete datasheet for Stmicroelectronics STPS1545D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

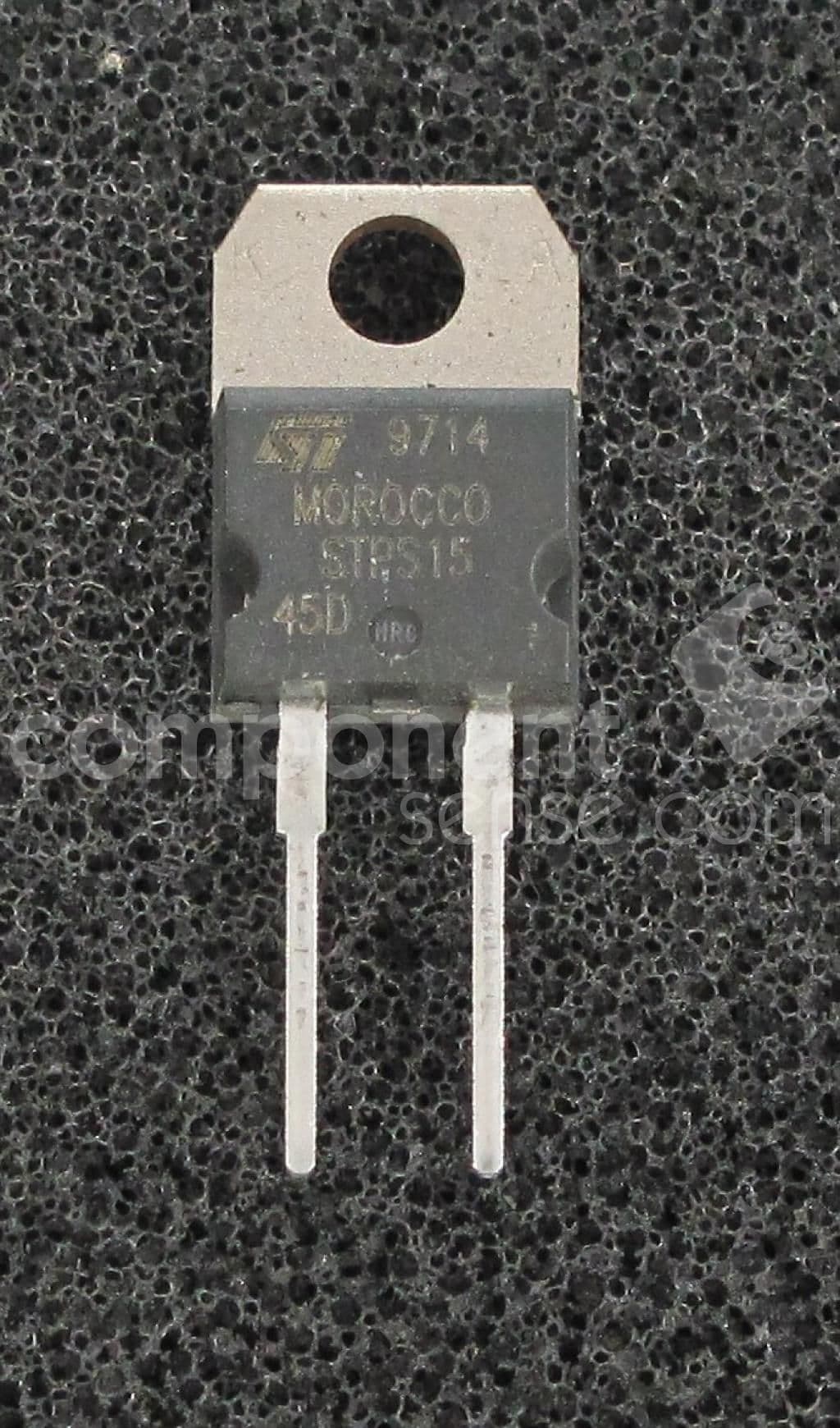

Product Images
