The STPS2H100AF is a surface mount general purpose rectifier diode with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It can handle a maximum repetitive reverse voltage of 100V and a maximum reverse current of 400uA. The diode is RoHS compliant and meets AEC-Q101 standards for automotive applications. It is available in a package quantity of 10000 units, packaged in tape and reel. The STPS2H100AF can withstand a maximum forward surge current of 75A and a peak non-repetitive surge current of 75A.
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STPS2H100AF technical specifications.
General
| Average Rectified Current | 2A |
| Forward Current | 2A |
| Max Forward Surge Current (Ifsm) | 75A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 400uA |
| Max Reverse Voltage (DC) | 100V |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 75A |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS2H100AF Datasheet
Download the complete datasheet for Stmicroelectronics STPS2H100AF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

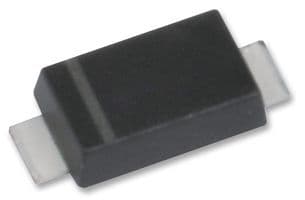

Product Images
