Surface mount general purpose rectifier featuring a 40V repetitive reverse voltage and 2A average rectified current. This low drop power Schottky rectifier offers a 2A forward current and a maximum surge current of 75A. Operating across a wide temperature range from -65°C to 150°C, it is housed in an SMB package with dimensions of 4.6mm length, 3.95mm width, and 2.45mm height. The component is RoHS compliant and lead-free.
PackageSMB
Current Rating2A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS2L40U technical specifications.
General
Average Rectified Current
2A
Package/Case
SMB
Current Rating
2A
Forward Current
2A
Height
2.45mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
75A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
220uA
Max Reverse Leakage Current
220uA
Max Reverse Voltage (DC)
40V
Max Surge Current
75A
Mount
Surface Mount
Output Current
2A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
75A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
40V
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS2L40U Datasheet
Download the complete datasheet for Stmicroelectronics STPS2L40U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

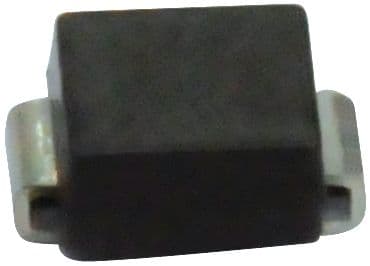

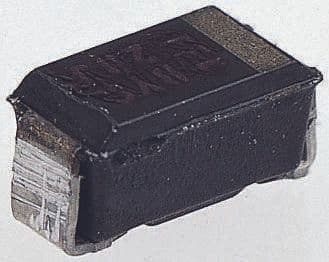

Product Images
