Dual 15A power Schottky rectifier with a 150V repetitive reverse voltage rating. Features a 30A forward current and 220A surge current capability. Encased in a TO-220AB through-hole package, this component operates from -65°C to 175°C. RoHS compliant and lead-free.
PackageTO-220AB
Current Rating30A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STPS30150CT technical specifications.
General
Average Rectified Current
15A
Package/Case
TO-220AB
Current Rating
30A
Forward Current
30A
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Forward Surge Current (Ifsm)
220A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
150V
Max Reverse Current
6.5uA
Max Reverse Leakage Current
6.5uA
Max Reverse Voltage (DC)
150V
Max Surge Current
220A
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
220A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
150V
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS30150CT Datasheet
Download the complete datasheet for Stmicroelectronics STPS30150CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

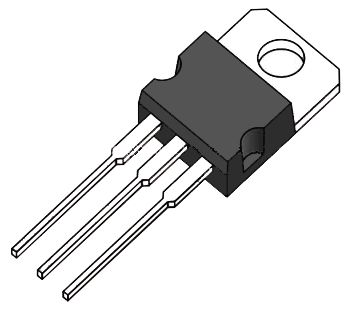

Product Images
