The STPS30L40CT is a 30A 40V general purpose rectifier diode available in a TO-220AB package with through hole mounting. It has a maximum reverse leakage current of 360uA and a maximum surge current of 220A. The diode is lead free and RoHS compliant, making it suitable for use in lead-free and RoHS compliant applications. The STPS30L40CT is rated for operation over a temperature range of -55°C to 150°C.
PackageTO-220AB
Current Rating30A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STPS30L40CT technical specifications.
General
| Average Rectified Current | 15A |
| Package/Case | TO-220AB |
| Current Rating | 30A |
| Lead Free | Lead Free |
| Max Reverse Leakage Current | 360uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 220A |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS30L40CT Datasheet
Download the complete datasheet for Stmicroelectronics STPS30L40CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

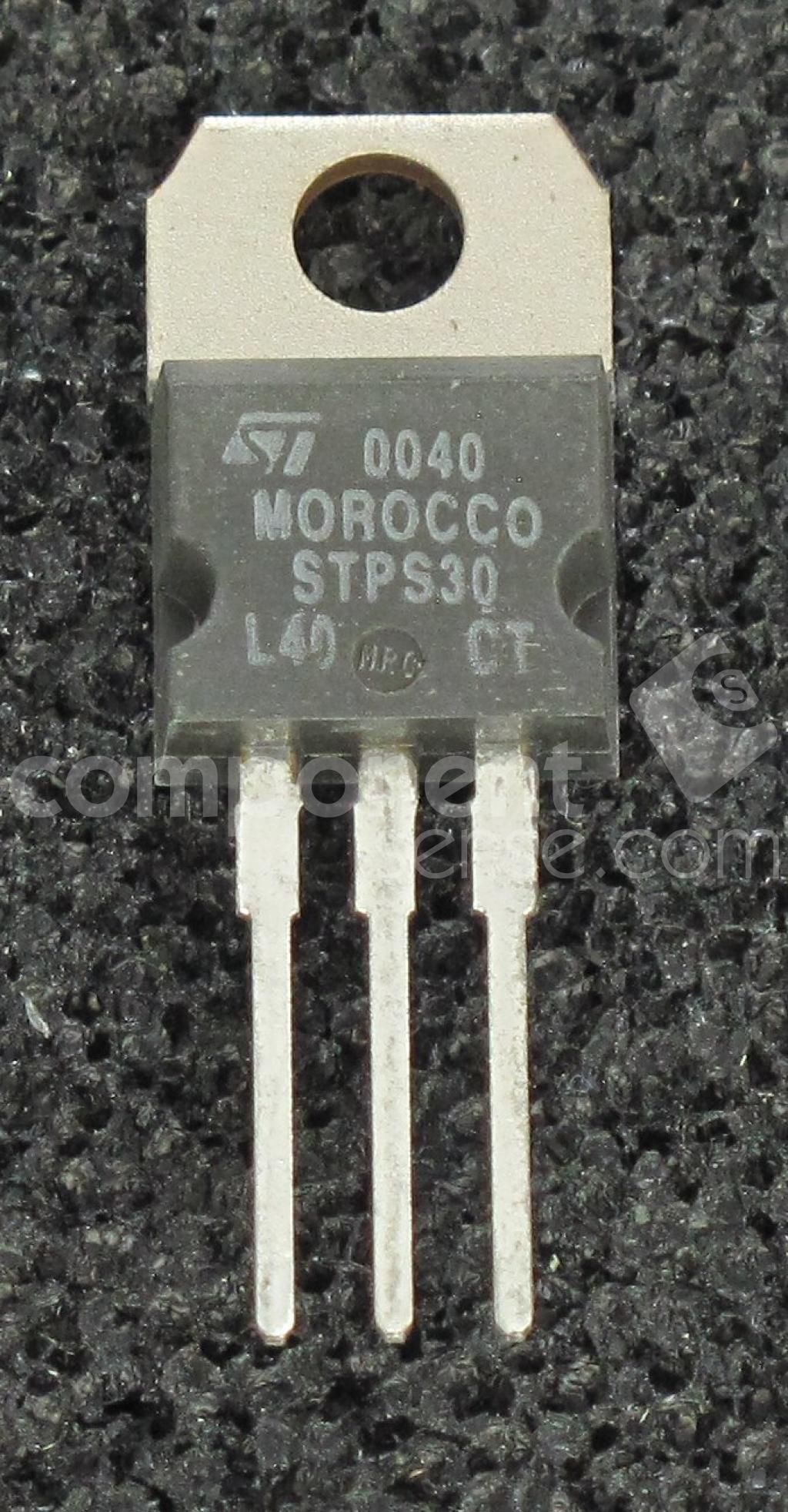

Product Images
