The STPS30L40CW is a general purpose rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 40V and a maximum reverse current of 360uA. The device is packaged in a TO-247 package and is RoHS compliant.
PackageTO-247
Current Rating30A
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Stmicroelectronics STPS30L40CW technical specifications.
General
| Average Rectified Current | 15A |
| Package/Case | TO-247 |
| Current Rating | 30A |
| Forward Current | 15A |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 220A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 360uA |
| Max Reverse Leakage Current | 360uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 220A |
| Mount | Through Hole, Radial |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 220A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS30L40CW Datasheet
Download the complete datasheet for Stmicroelectronics STPS30L40CW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

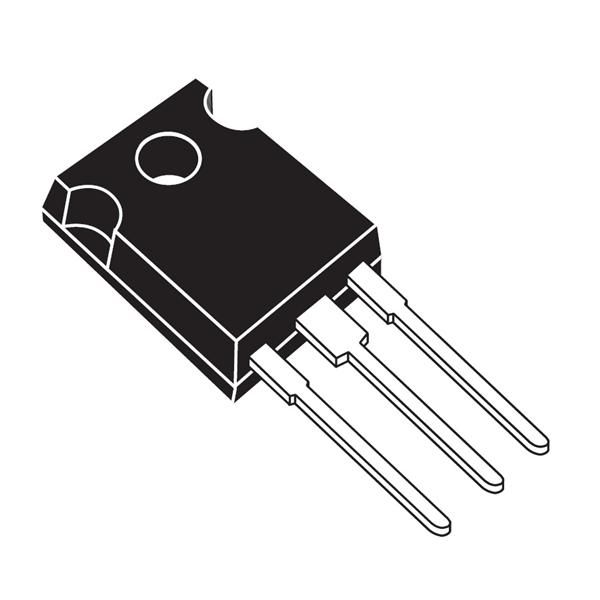

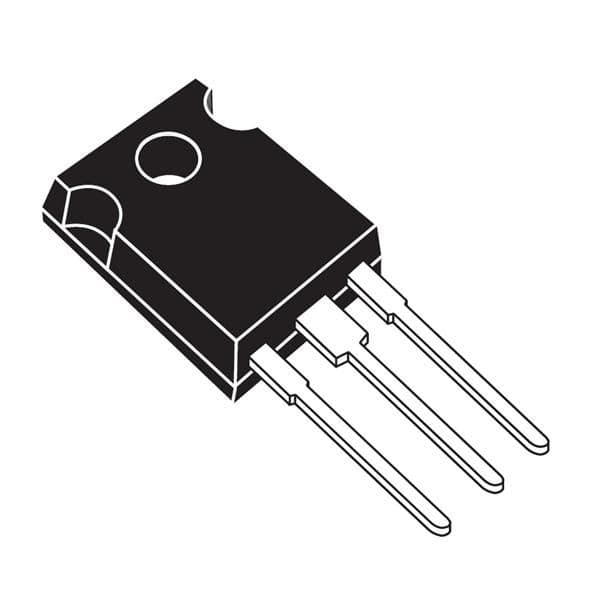

Product Images
