Surface mount low drop power Schottky rectifier with a 3A average rectified current rating. Features a 25V maximum repetitive reverse voltage and a 75A maximum surge current. Operates across a wide temperature range from -65°C to 150°C. Packaged in SMC, this lead-free and RoHS compliant component is ideal for general-purpose rectification applications.
PackageSMC
Current Rating3A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS3L25S technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | SMC |
| Current Rating | 3A |
| Forward Current | 3A |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Max Forward Surge Current (Ifsm) | 75A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 25V |
| Max Reverse Current | 90uA |
| Max Reverse Leakage Current | 90uA |
| Max Reverse Voltage (DC) | 25V |
| Max Surge Current | 75A |
| Mount | Surface Mount |
| Output Current | 3A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 75A |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 25V |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS3L25S Datasheet
Download the complete datasheet for Stmicroelectronics STPS3L25S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

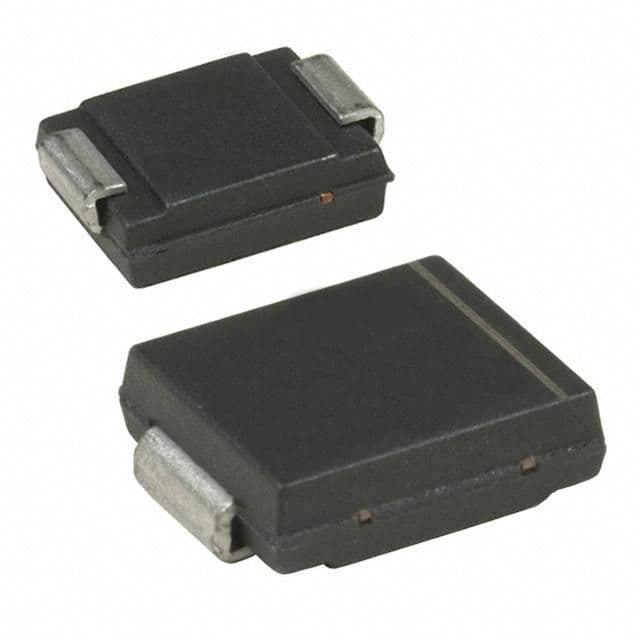

Product Images
