3A Surface Mount Power Schottky Rectifier, featuring a 60V repetitive reverse voltage and 3A average rectified current. This component offers a low reverse leakage current of 150uA at 150°C and a maximum forward surge current of 100A. Encased in an SMB package with dimensions of 4.6mm (L) x 3.95mm (W) x 2.45mm (H), it operates within a temperature range of -65°C to 150°C and is RoHS compliant.
PackageSMB
Current Rating3A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STPS3L60U technical specifications.
General
Average Rectified Current
3A
Package/Case
SMB
Current Rating
3A
Forward Current
3A
Height
2.45mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
150uA
Max Reverse Leakage Current
150uA
Max Reverse Voltage (DC)
60V
Max Surge Current
100A
Mount
Surface Mount
Output Current
3A
Package Quantity
2500
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
60V
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STPS3L60U Datasheet
Download the complete datasheet for Stmicroelectronics STPS3L60U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

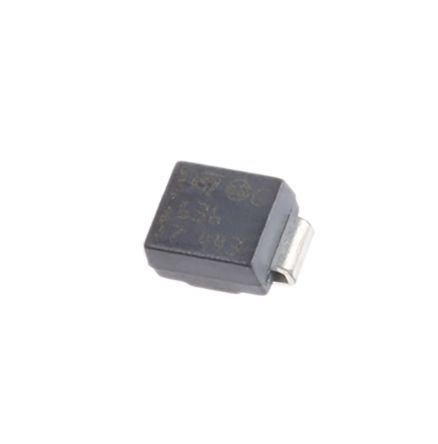

Product Images
