Dual Power Schottky Rectifier, 170V Vrrm, 60A forward current, and 30A average rectified current. Features a maximum operating temperature of 175°C and a minimum of -65°C. This through-hole component is housed in a TO-220AB package with dimensions of 10.4mm length, 9.15mm height, and 4.6mm width. It offers a peak non-repetitive surge current of 270A and is RoHS compliant.
PackageTO-220AB
Current Rating60A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STPS60170CT technical specifications.
General
| Average Rectified Current | 30A |
| Package/Case | TO-220AB |
| Current Rating | 60A |
| Forward Current | 60A |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Forward Surge Current (Ifsm) | 270A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 170V |
| Max Reverse Current | 35uA |
| Max Reverse Leakage Current | 35uA |
| Max Reverse Voltage (DC) | 170V |
| Max Surge Current | 270A |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 270A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 170V |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STPS60170CT Datasheet
Download the complete datasheet for Stmicroelectronics STPS60170CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

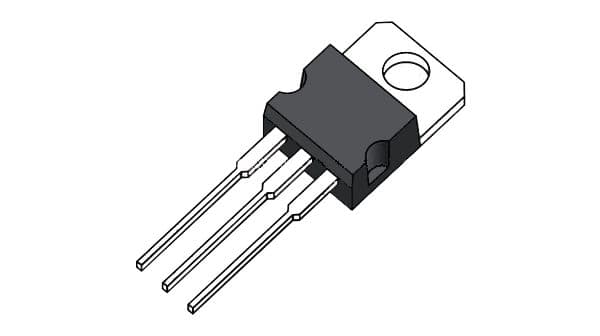

Product Images
