Dual Ultrafast Diode module featuring a 120A forward current and 60A average rectified current. Offers a 1kV repetitive reverse voltage and 1kV DC rated voltage, with a maximum reverse current of 20uA. Designed for chassis mount applications, this lead-free, RoHS compliant component operates from -65°C to 150°C and boasts a 400A maximum surge current. The module has a 115ns reverse recovery time.
PackageModule
Current Rating60A
MountingChassis Mount, Panel, Screw
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH12010TV1 technical specifications.
General
| Average Rectified Current | 60A |
| Package/Case | Module |
| Current Rating | 60A |
| Forward Current | 120A |
| Height | 9.1mm |
| Lead Free | Lead Free |
| Length | 38.2mm |
| Max Forward Surge Current (Ifsm) | 400A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 20uA |
| Max Reverse Voltage (DC) | 1kV |
| Max Surge Current | 400A |
| Mount | Chassis Mount, Panel, Screw |
| Output Current | 60A |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 400A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 115ns |
| Reverse Recovery Time-Max | 115ns |
| Reverse Voltage | 1kV |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
| Width | 25.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH12010TV1 Datasheet
Download the complete datasheet for Stmicroelectronics STTH12010TV1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

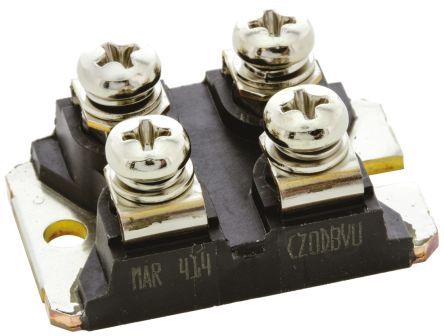

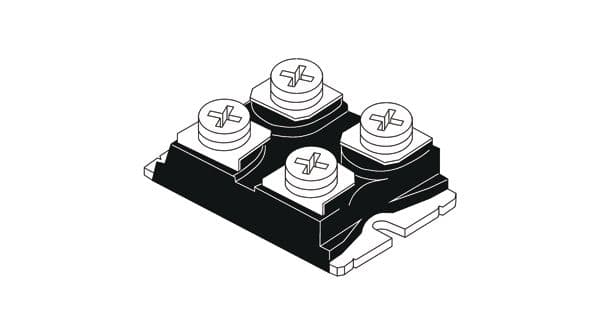

Product Images
