Ultrafast recovery diode with a 1200V repetitive reverse voltage (Vrrm) and 60A average rectified current. Features a 120A forward current, 420A peak non-repetitive surge current, and a reverse recovery time of 125ns. This chassis mount component operates from -65°C to 150°C and is housed in a SOT package. RoHS compliant and lead-free.
PackageSOT
Current Rating60A
MountingChassis Mount, Panel, Screw
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH12012TV1 technical specifications.
General
| Average Rectified Current | 60A |
| Package/Case | SOT |
| Current Rating | 60A |
| Forward Current | 120A |
| Height | 9.1mm |
| Lead Free | Lead Free |
| Length | 38.2mm |
| Max Forward Surge Current (Ifsm) | 420A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 30uA |
| Max Reverse Voltage (DC) | 1.2kV |
| Max Surge Current | 420A |
| Mount | Chassis Mount, Panel, Screw |
| Output Current | 60A |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 420A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 125ns |
| Reverse Recovery Time-Max | 125ns |
| Reverse Voltage | 1.2kV |
| RoHS Compliant | Yes |
| DC Rated Voltage | 1.2kV |
| Width | 25.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH12012TV1 Datasheet
Download the complete datasheet for Stmicroelectronics STTH12012TV1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

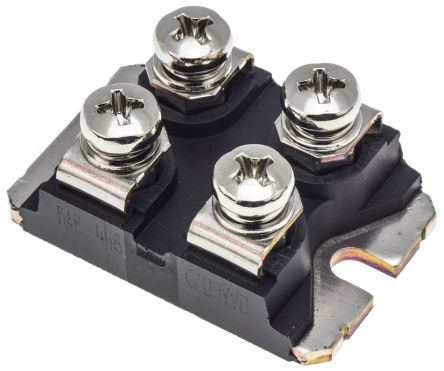

Product Images
