600V, 3A Turbo 2 Ultrafast Diode for general-purpose rectification. Features a 3A average rectified current and 45A peak non-repetitive surge current. Operates across a wide temperature range from -65°C to 175°C. Packaged in an SMB surface-mount case with dimensions of 4.6mm length, 3.95mm width, and 2.45mm height. Offers a reverse recovery time of 30ns (max 35ns) and a low reverse current of 3uA. RoHS compliant and lead-free.
PackageSMB
Current Rating3A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH3R06U technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | SMB |
| Current Rating | 3A |
| Forward Current | 3A |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Forward Surge Current (Ifsm) | 45A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 3uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 45A |
| Mount | Surface Mount |
| Output Current | 3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 45A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 30ns |
| Reverse Recovery Time-Max | 35ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 600V |
| Width | 3.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STTH3R06U Datasheet
Download the complete datasheet for Stmicroelectronics STTH3R06U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

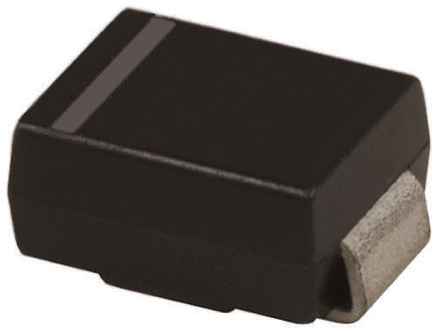

Product Images
