Ultrafast diode with 200V repetitive reverse voltage and 8A average rectified current. Features a 30ns reverse recovery time and 100A peak non-repetitive surge current. Packaged in a DPAK surface mount case, this RoHS compliant component operates from -65°C to 175°C.
PackageDPAK
Current Rating8A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Stmicroelectronics STTH802B-TR technical specifications.
General
Average Rectified Current
8A
Package/Case
DPAK
Current Rating
8A
Forward Current
8A
Height
2.4mm
Lead Free
Lead Free
Length
6.6mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
6uA
Max Reverse Voltage (DC)
200V
Max Surge Current
100A
Mount
Surface Mount
Output Current
8A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
30ns
Reverse Recovery Time-Max
30ns
Reverse Voltage
200V
RoHS Compliant
Yes
DC Rated Voltage
200V
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STTH802B-TR Datasheet
Download the complete datasheet for Stmicroelectronics STTH802B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

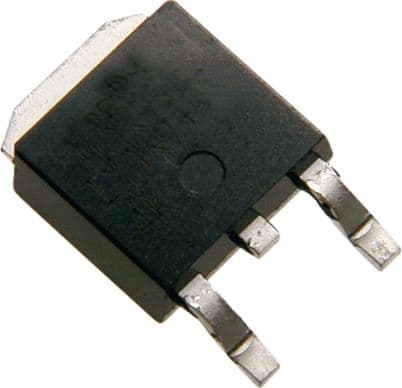

Product Images
