Stmicroelectronics
STW10N95K5

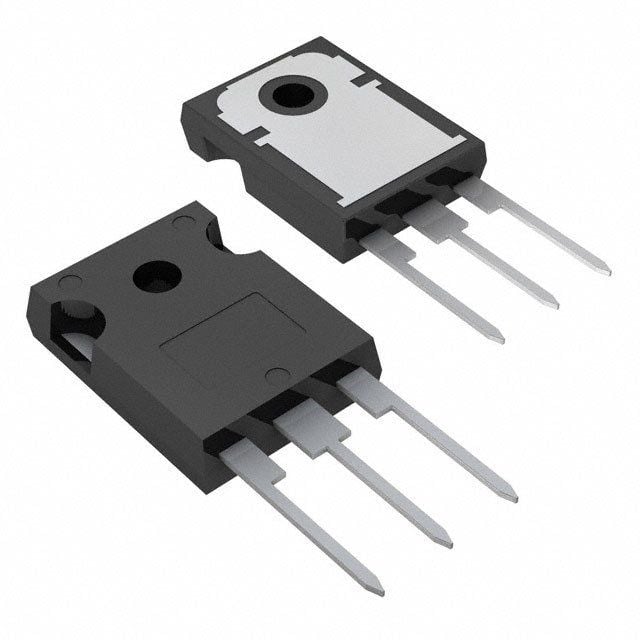

N-channel 950 V, 0.65 Ohm typ., 8 A MDmesh K5 Power MOSFET in a TO-247 package
PackageTO-247
MountingThrough Hole
Power130W
Quick Jump:
Technical Specifications
Stmicroelectronics STW10N95K5 technical specifications.
General
| Package/Case | TO-247 |
| Continuous Drain Current (ID) | 8A |
| Drain to Source Voltage (Vdss) | 950V |
| Fall Time | 15ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 20.15mm |
| Input Capacitance | 630pF |
| Lead Free | Lead Free |
| Length | 15.75mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 130W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Power Dissipation | 130W |
| Rds On Max | 800mR |
| RoHS Compliant | Yes |
| Series | SuperMESH5™ |
| Turn-Off Delay Time | 51ns |
| Turn-On Delay Time | 22ns |
| Width | 5.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STW10N95K5 Datasheet
Download the complete datasheet for Stmicroelectronics STW10N95K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
