N-channel Power MOSFET with 500V drain-source breakdown voltage and 45A continuous drain current. Features 100mΩ maximum drain-source on-resistance and 417W maximum power dissipation. Operates within a temperature range of -65°C to 150°C. Packaged in a TO-247 through-hole mount with RoHS compliance. Includes 26.5ns turn-on delay and 87.7ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STW45NM50FD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

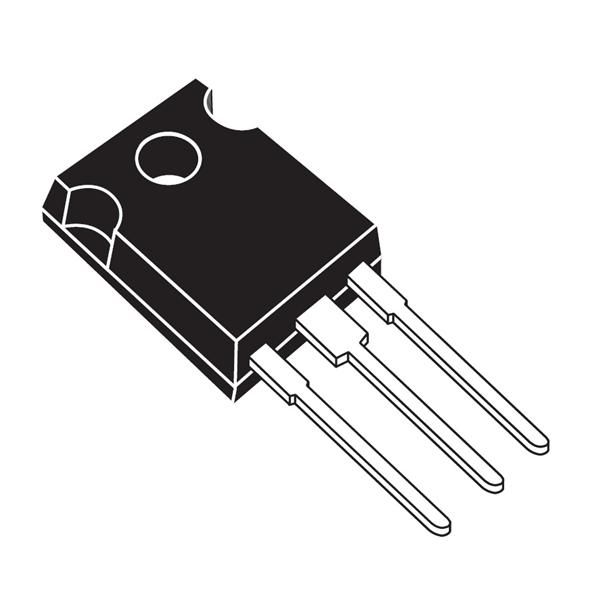

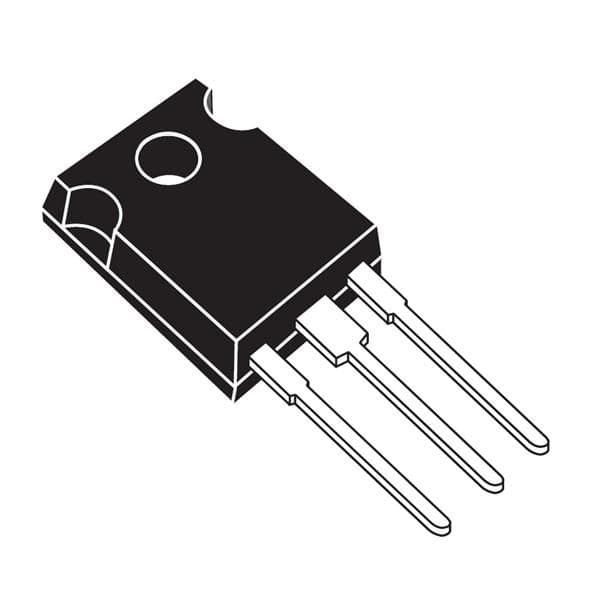

Stmicroelectronics STW45NM50FD technical specifications.
| Package/Case | TO-247 |
| Continuous Drain Current (ID) | 45A |
| Current Rating | 45A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 100mR |
| Drain to Source Voltage (Vdss) | 500V |
| Drain-source On Resistance-Max | 100mR |
| Fall Time | 87.7ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 20.15mm |
| Input Capacitance | 3.6nF |
| Lead Free | Lead Free |
| Length | 15.75mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 417W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 417W |
| Rds On Max | 100mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FDmesh™ |
| Threshold Voltage | 4V |
| Turn-Off Delay Time | 21.6ns |
| Turn-On Delay Time | 26.5ns |
| DC Rated Voltage | 500V |
| Width | 5.15mm |
| RoHS | Compliant |
