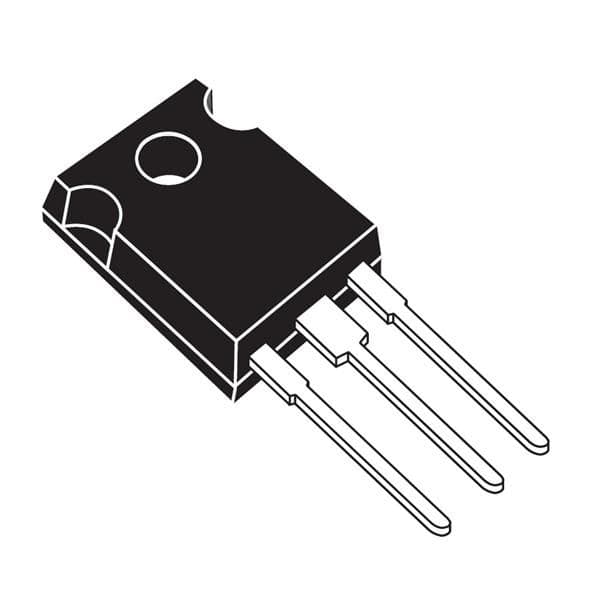

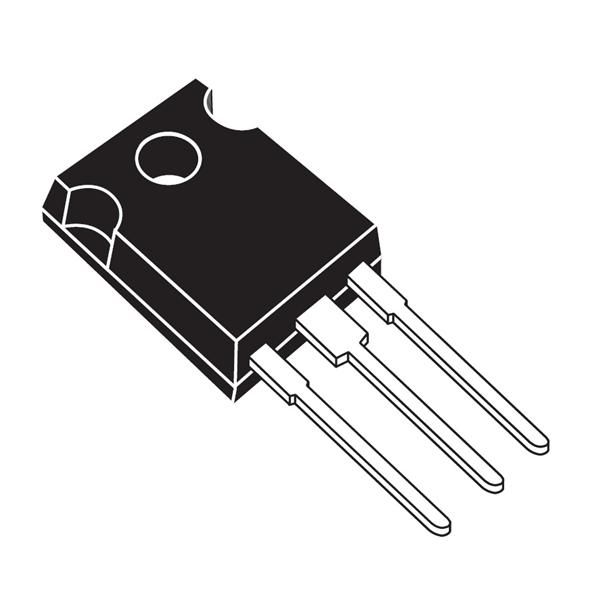

The STW80NF55-08 is a 55V, 80A N-CHANNEL power MOSFET packaged in a TO-247-3 case, suitable for through hole mounting. It features a maximum operating temperature range of -55°C to 175°C and a maximum power dissipation of 300W. The device is RoHS compliant and part of the STripFET series.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STW80NF55-08 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-247-3 |
| Continuous Drain Current (ID) | 80A |
| Drain to Source Breakdown Voltage | 55V |
| Drain to Source Resistance | 8mR |
| Drain to Source Voltage (Vdss) | 55V |
| Fall Time | 35ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 3.85nF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 300W |
| Radiation Hardening | No |
| Rds On Max | 8mR |
| RoHS Compliant | Yes |
| Series | STripFET™ |
| Turn-Off Delay Time | 75ns |
| Turn-On Delay Time | 20ns |
| RoHS | Compliant |
