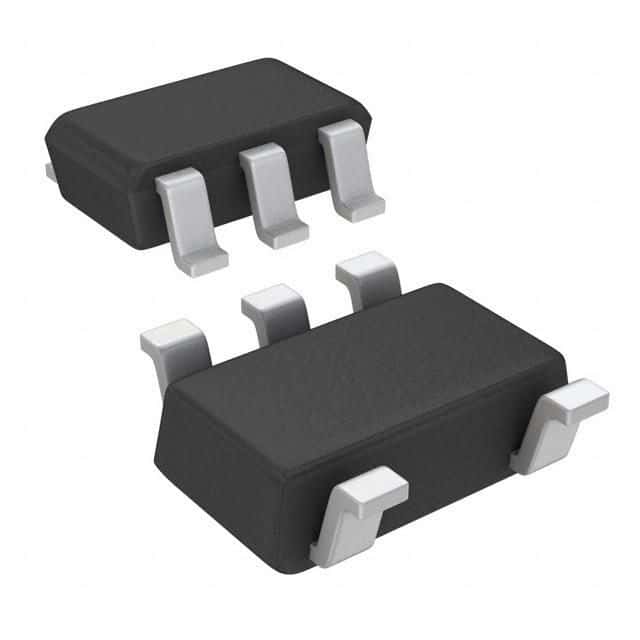

Surface mount watchdog circuit in a SOT-23 package, measuring 3mm x 1.75mm x 1.3mm. Features a single monitored input and a single timer/counter, with one voltage monitored. Operates from 2.7V to 5.5V with a typical supply current of 13µA and a maximum power dissipation of 320mW. Offers an active low reset with a 2.3ms reset timeout, suitable for automotive applications and AEC-Q100 qualified. Operates across a temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STWD100YNPWY3F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics STWD100YNPWY3F technical specifications.
| Package/Case | SOT-23 |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Monitored Inputs | 1 |
| Number of Timers/Counters | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 13uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 2.3ms |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Type | Watchdog Circuit |
| Width | 1.75mm |
| RoHS | Compliant |
