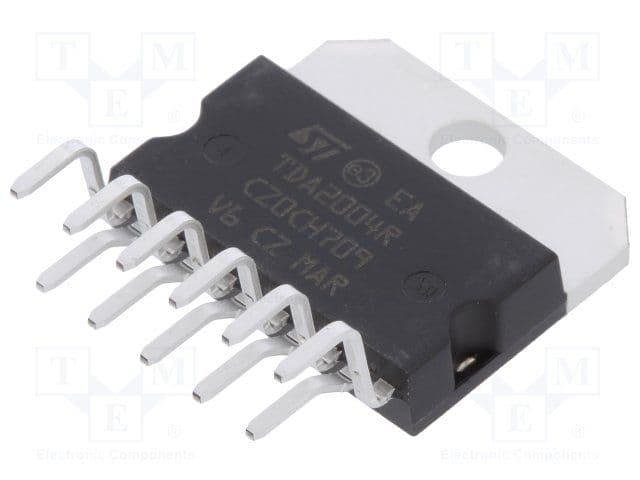

The TDA2004R is a dual audio amplifier from Stmicroelectronics with a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. It has a maximum supply voltage of 18V and a minimum supply voltage of 8V. The amplifier is designed for through hole mounting and is available in a RoHS compliant, multiwatt-25 package. The TDA2004R is a single supply type amplifier with a voltage gain of 90dB and a power dissipation of 30W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics TDA2004R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics TDA2004R technical specifications.
| Gain | 50dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 12W |
| Max Power Dissipation | 30W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 8V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Operating Supply Voltage | 15V |
| Output Power | 12W |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 30W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TDA2004R |
| Supply Type | Single |
| Voltage Gain | 90dB |
| RoHS | Compliant |
Download the complete datasheet for Stmicroelectronics TDA2004R to view detailed technical specifications.
