Single BTL or dual SE output amplifier
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics TDA2005M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Stmicroelectronics TDA2005M technical specifications.

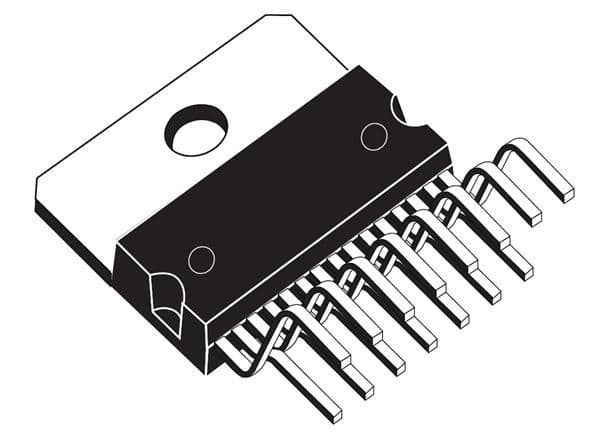

| Package/Case | SIL |
| Gain | 90dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 22W |
| Max Power Dissipation | 30W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 8V |
| Mount | Through Hole |
| Operating Supply Voltage | 15V |
| Output Power | 22W |
| Output Voltage | 7.7V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 20W |
| Power Supply Rejection Ratio (PSRR) | 55dB |
| Quiescent Current | 75mA |
| RoHS Compliant | Yes |
| Series | TDA2005 |
| Supply Current | 3.5A |
| Supply Type | Single |
| RoHS | Compliant |
