The TDA7309 is a dual I2C audio IC with a maximum operating temperature of 85°C and a nominal supply current of 10mA. It is packaged in a DIP20 package and is compliant with RoHS regulations. The IC is designed for use in audio applications and is available in quantities of 50 per package. The TDA7309 is a specialized IC suitable for use in audio systems.
PackageDIP
Quick Jump:
Technical Specifications
Stmicroelectronics TDA7309 technical specifications.
General
| Package/Case | DIP |
| Interface | I2C |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Supply Current | 10mA |
| Number of Channels | 2 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TDA7309 |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TDA7309 Datasheet
Download the complete datasheet for Stmicroelectronics TDA7309 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

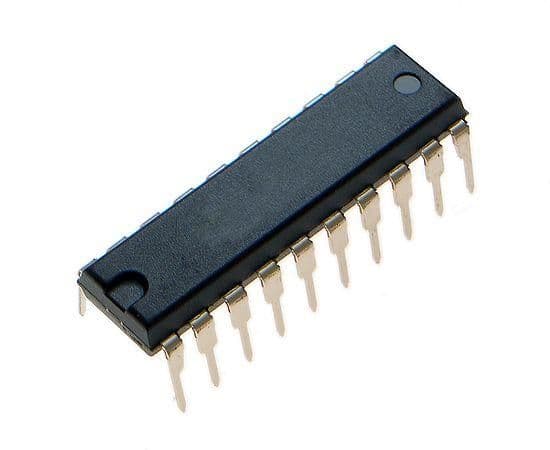

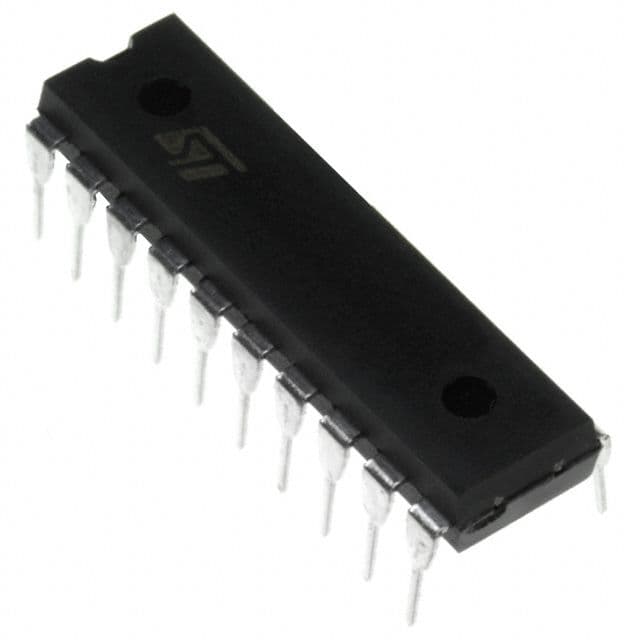

Product Images
