Dual JFET input operational amplifier featuring low input bias current of 200pA and a gain bandwidth product of 4MHz. This low-noise amplifier offers a typical slew rate of 13V/µs and a voltage gain of 106.02dB. Designed for surface mounting in an SO package, it operates with dual supply voltages ranging from 3V to 15V, with a maximum of 18V. The device boasts a common mode rejection ratio of 70dB and a maximum operating temperature of 70°C.
PackageSO
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TL072CD technical specifications.
General
Amplifier Type
LOW NOISE
Package/Case
SO
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
15V
Gain Bandwidth Product
4MHz
Height
1.25mm
Input Bias Current
200pA
Input Offset Voltage (Vos)
10mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3V
Max Input Voltage
15V
Min Input Voltage
-12V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
16V/µs
Slew Rate-Nom
13V/µs
Supply Current
2.5mA
Technology
BIFET
Unity Gain Bandwidth Product
4MHz
Voltage Gain
106.02dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TL072CD Datasheet
Download the complete datasheet for Stmicroelectronics TL072CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

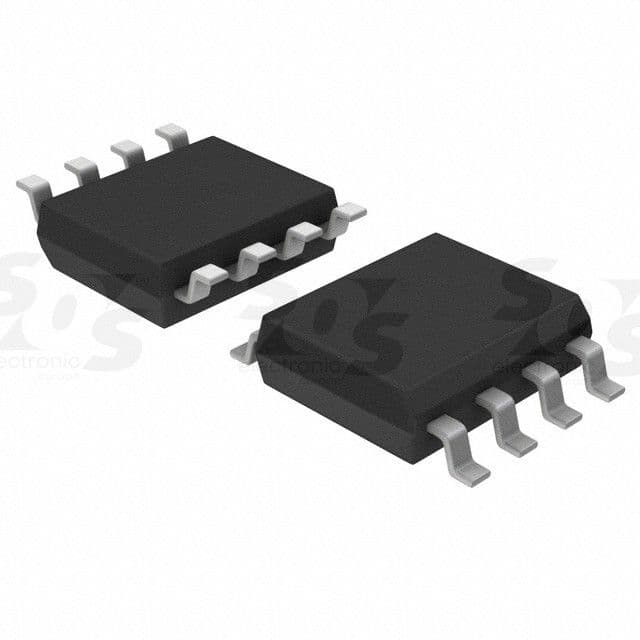

Product Images
