Quad JFET input operational amplifier with 4MHz bandwidth and 16V/µs slew rate. Features low 200pA input bias current, 10mV input offset voltage, and 70dB common mode rejection ratio. Operates from a dual supply voltage range of 3V to 15V, with a maximum supply voltage of 36V. Packaged in a surface-mount SOIC case, this RoHS compliant component offers 40mA output current per channel.
PackageSOIC
Current2.5mA
MountingSurface Mount
Power680mW
Quick Jump:
Technical Specifications
Stmicroelectronics TL084CD technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
15V
Gain Bandwidth Product
4MHz
Height
1.65mm
Input Bias Current
200pA
Input Offset Voltage (Vos)
10mV
Input Offset Voltage-Max
10mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3V
Max Input Voltage
15V
Min Input Voltage
-12V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
680mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
16V/µs
Slew Rate-Nom
16V/µs
Supply Current
2.5mA
Technology
BIFET
Unity Gain Bandwidth Product
4MHz
Voltage Gain
106.02dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TL084CD Datasheet
Download the complete datasheet for Stmicroelectronics TL084CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

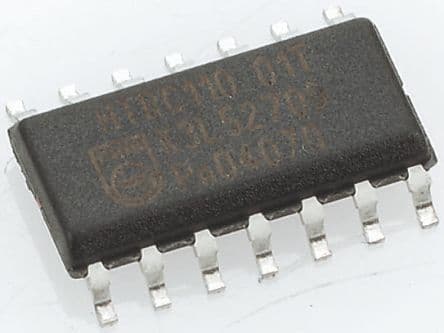

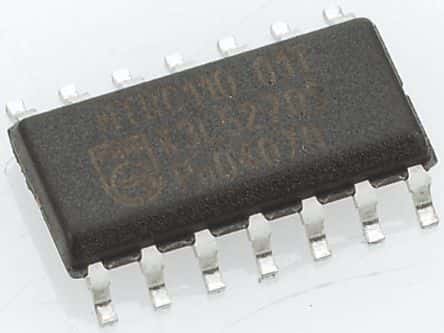

Product Images
