The TL431AIZ-AP is a 3-terminal adjustable shunt voltage reference with a minimum output voltage of 2.495V and a maximum output voltage of 36V. It can supply a maximum output current of 100mA and has a maximum input voltage of 37V. The device is packaged in a TO-92 package and is lead-free. It operates over a temperature range of -40°C to 105°C and is RoHS compliant.
PackageTO-92
Current100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TL431AIZ-AP technical specifications.
General
| Package/Case | TO-92 |
| Cathode Current | 700uA |
| Lead Free | Lead Free |
| Max Input Voltage | 37V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Output Voltage | 2.495V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 36V |
| Package Quantity | 2000 |
| Packaging | Ammo Pack |
| Reference Type | Shunt, Adjustable |
| RoHS Compliant | Yes |
| Supply Current | 100mA |
| Tolerance | 1% |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TL431AIZ-AP Datasheet
Download the complete datasheet for Stmicroelectronics TL431AIZ-AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

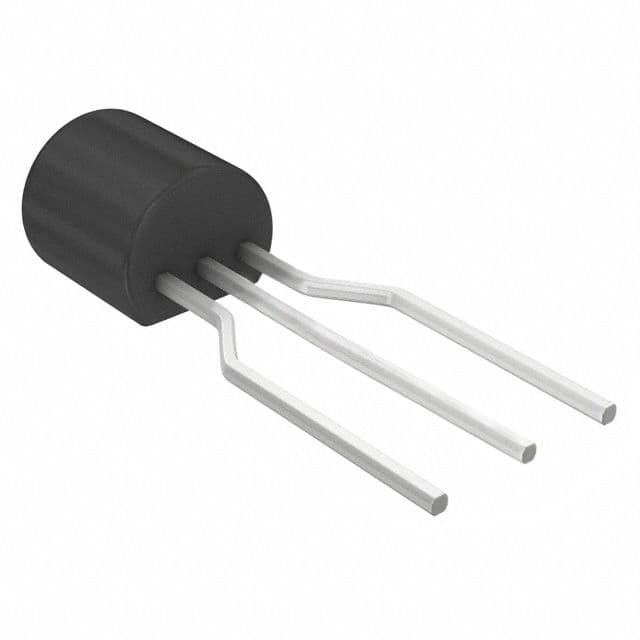

Product Images
