Adjustable micropower shunt voltage reference IC, offering a precise 1% tolerance and a configurable output voltage range from 2.5V to 36V. This through-hole component operates with a cathode current of 700µA and supports a maximum output current of 100mA. Designed for reliability, it features a wide operating temperature range of -40°C to 105°C and a maximum input voltage of 37V. Packaged in a TO-92 case, this RoHS compliant device is ideal for power management applications.
PackageTO-92
Current100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TL431AIZT technical specifications.
General
Package/Case
TO-92
Cathode Current
700uA
Height
4.4mm
Lead Free
Lead Free
Length
4.7mm
Max Input Voltage
37V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.5V
Mount
Through Hole
Number of Channels
1
Output Current
100mA
Output Voltage
36V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
36V
RoHS Compliant
Yes
Supply Current
100mA
Tolerance
1%
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TL431AIZT Datasheet
Download the complete datasheet for Stmicroelectronics TL431AIZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

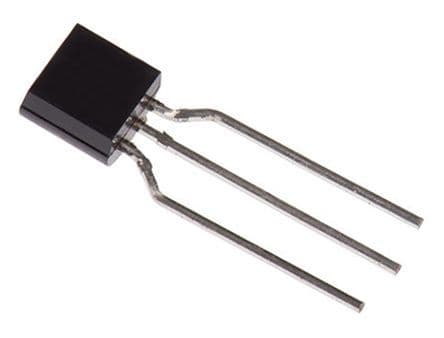

Product Images
