Four-channel, general-purpose operational amplifier featuring a 3.5MHz gain bandwidth product and 5.5V/µs slew rate. This CMOS IC operates from a 3V to 16V supply range with a typical 1mA operating supply current. It offers a 65dB common mode rejection ratio and a 10mV input offset voltage, with a low 1pA input bias current. Designed for through-hole mounting in a DIP package, it supports up to 60mA output current.
PackageDIP
Current6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TS274CN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 3.5MHz |
| Package/Case | DIP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 3.5MHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 8V |
| Output Current | 60mA |
| Output Current per Channel | 45mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 5.5V/µs |
| Supply Current | 6mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 3.5MHz |
| Voltage Gain | 83.52dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TS274CN Datasheet
Download the complete datasheet for Stmicroelectronics TS274CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

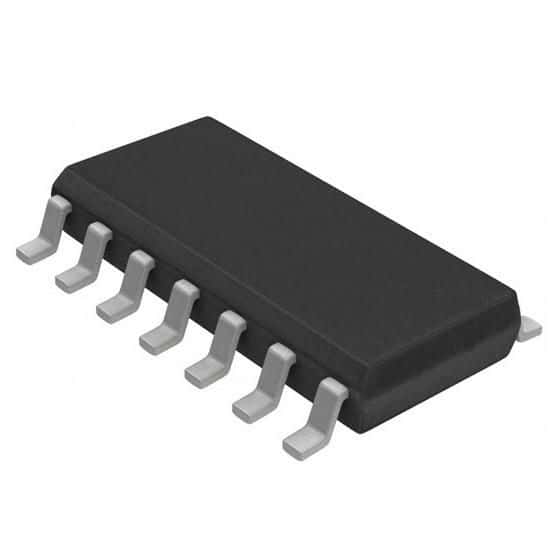

Product Images
