Quad-channel, general-purpose operational amplifier featuring micropower consumption and high voltage capability. This CMOS op-amp offers a 100kHz gain bandwidth product, 100dB voltage gain, and a 0.04V/µs slew rate. Designed for through-hole mounting in a PDIP package, it operates with a minimum dual supply voltage of 1.5V and a maximum of 16V, drawing a typical 10µA operating supply current. Key performance metrics include a 65dB common mode rejection ratio and a low 1pA input bias current.
PackagePDIP
Current60uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TS27L4CN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 100kHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 100kHz |
| Height | 5.1mm |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 10mV |
| Length | 20mm |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 10uA |
| Operating Supply Voltage | 8V |
| Output Current | 60mA |
| Output Current per Channel | 45mA |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.04V/µs |
| Supply Current | 60uA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 100kHz |
| Voltage Gain | 100dB |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TS27L4CN Datasheet
Download the complete datasheet for Stmicroelectronics TS27L4CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

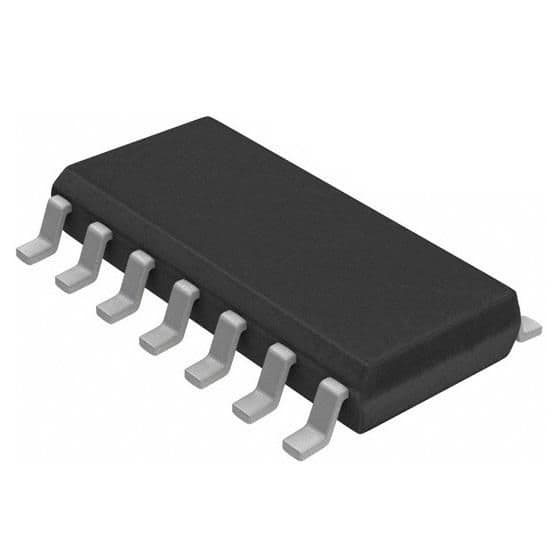

Product Images
