Dual operational amplifier featuring CMOS technology for low power consumption. Offers a 1MHz gain bandwidth product and 800kHz bandwidth, with a slew rate of 0.8V/µs. Operates with dual supply voltages from 1.35V to 5V, and single supply from 2.7V to 16V. Designed for surface mount applications in a SO package, this general-purpose amplifier boasts a 150pA input bias current and 10mV input offset voltage.
PackageSO
Current700uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TS912ID technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
800kHz
Package/Case
SO
Common Mode Rejection Ratio
60dB
Dual Supply Voltage
5V
Gain Bandwidth Product
1MHz
Height
1.25mm
Input Bias Current
150pA
Input Offset Voltage (Vos)
10mV
Input Offset Voltage-Max
10mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
400uA
Operating Supply Voltage
8V
Output Current
40mA
Output Current per Channel
75mA
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.8V/µs
Slew Rate-Nom
1.3V/µs
Supply Current
700uA
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
92.04dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TS912ID Datasheet
Download the complete datasheet for Stmicroelectronics TS912ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

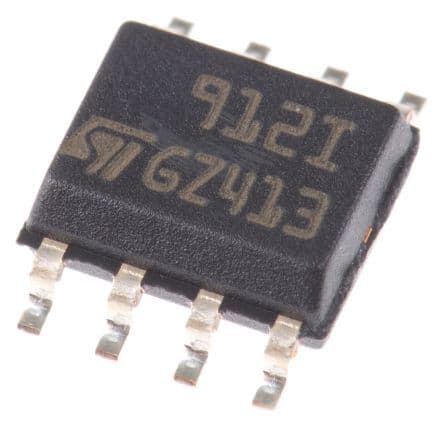

Product Images
