Quad operational amplifier featuring a 4MHz gain bandwidth product and 1.3V/µs slew rate. This general-purpose op-amp offers 4 channels with a 60dB common mode rejection ratio and 106.02dB voltage gain. Operating from 2.7V to 12V supply, it has a 1mA operating supply current and 80mA output current per channel. Packaged in a 14-pin PDIP for through-hole mounting, this RoHS compliant component operates from -40°C to 125°C.
PackagePDIP
Current7mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TS924AIN technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 900uV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1mA |
| Output Current | 80mA |
| Output Current per Channel | 80mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Slew Rate | 1.3V/µs |
| Supply Current | 7mA |
| Technology | BICMOS |
| Unity Gain Bandwidth Product | 4MHz |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TS924AIN Datasheet
Download the complete datasheet for Stmicroelectronics TS924AIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

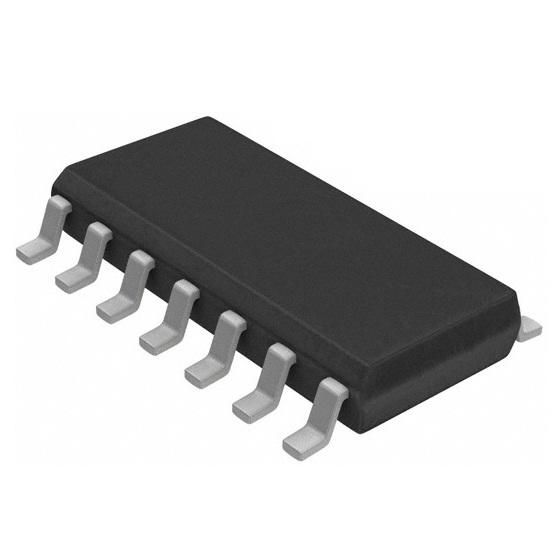

Product Images
