The TS944BIPT is a 4-channel operational amplifier from Stmicroelectronics. It features a gain bandwidth product of 10kHz and a common mode rejection ratio of 60dB. The op amp operates over a supply voltage range of 2.5V to 10V and has an input bias current of 150pA. It is available in a TSSOP package and is suitable for surface mount applications. The TS944BIPT is rated for operation over a temperature range of -40°C to 85°C and is compliant with RoHS regulations.
PackageTSSOP
Current7.4uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TS944BIPT technical specifications.
General
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 10kHz |
| Input Bias Current | 150pA |
| Input Offset Voltage (Vos) | 2mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Output Current | 650uA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.0045V/µs |
| Supply Current | 7.4uA |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TS944BIPT Datasheet
Download the complete datasheet for Stmicroelectronics TS944BIPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

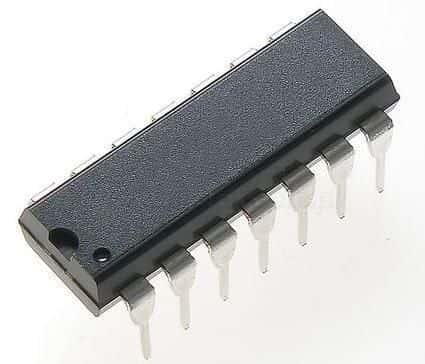

Product Images
