Dual operational amplifier featuring real input and output rail-to-rail capability and low distortion (0.01%). This general-purpose amplifier offers a 3MHz bandwidth and 1V/µs slew rate, ideal for surface mount applications. Operating from 2.7V to 12V supply, it provides 86dB voltage gain and 10mA output current per channel. Housed in a 1.05mm height TSSOP package, this lead-free, RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageTSSOP
Current2.8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TS952IPT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
3MHz
Package/Case
TSSOP
Common Mode Rejection Ratio
50dB
Gain Bandwidth Product
3MHz
Height
1.05mm
Input Bias Current
100nA
Input Offset Voltage (Vos)
6mV
Input Offset Voltage-Max
6V
Lead Free
Lead Free
Length
4.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
950uA
Output Current
10mA
Output Current per Channel
10mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1V/µs
Slew Rate-Nom
1V/µs
Supply Current
2.8mA
Technology
BICMOS
Unity Gain Bandwidth Product
3MHz
Voltage Gain
86dB
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TS952IPT Datasheet
Download the complete datasheet for Stmicroelectronics TS952IPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

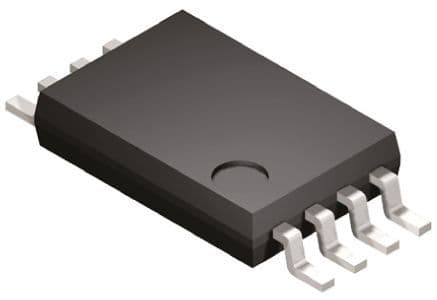

Product Images
