Quad operational amplifier featuring rail-to-rail input and output with low distortion (0.01%). This general-purpose amplifier offers a 3MHz bandwidth and a 1V/µs slew rate. It operates from a 2.7V to 12V supply voltage range and has a typical supply current of 950µA per amplifier. The component is available in a surface-mount SO package, measuring 8.75mm in length, 4mm in width, and 1.65mm in height.
PackageSO
Current5.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics TS954IDT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
3MHz
Package/Case
SO
Common Mode Rejection Ratio
50dB
Gain Bandwidth Product
3MHz
Height
1.65mm
Input Bias Current
100nA
Input Offset Voltage (Vos)
6mV
Input Offset Voltage-Max
6mV
Lead Free
Lead Free
Length
8.75mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
950uA
Output Current
10mA
Output Current per Channel
10mA
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1V/µs
Slew Rate-Nom
1V/µs
Supply Current
5.6mA
Technology
BICMOS
Unity Gain Bandwidth Product
3MHz
Voltage Gain
86dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics TS954IDT Datasheet
Download the complete datasheet for Stmicroelectronics TS954IDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

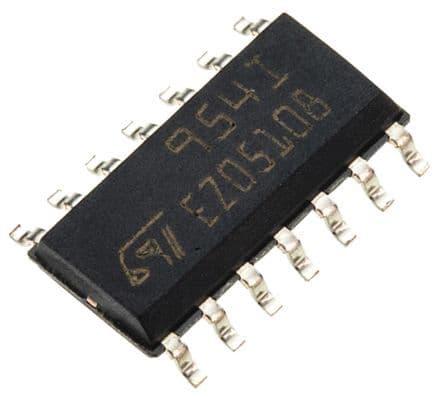

Product Images
