The TYN610RG is a silicon controlled rectifier with a maximum repetitive reverse voltage of 600V and a current rating of 10A. It is packaged in a TO-220AB flange mount with a through hole mount type. The device operates over a temperature range of -40°C to 125°C and is RoHS compliant. The TYN610RG is suitable for use in a variety of applications including power supplies and motor control circuits.
PackageTO-220AB
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics TYN610RG technical specifications.
General
| Package/Case | TO-220AB |
| Current Rating | 10A |
| Height | 9.15mm |
| Hold Current | 30mA |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Through Hole |
| Number of Contacts | 3 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RMS Current (Irms) | 10A |
| RoHS Compliant | Yes |
| DC Rated Voltage | 600V |
| Weight | 0.08113oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics TYN610RG Datasheet
Download the complete datasheet for Stmicroelectronics TYN610RG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

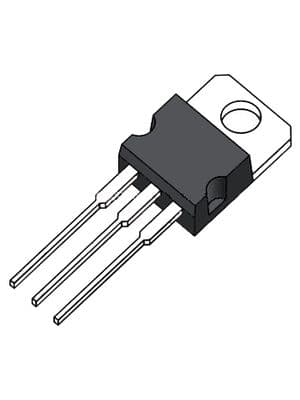

Product Images
