Quad Darlington switch featuring 50V collector-emitter breakdown voltage and 1.5A continuous output current. This NPN bipolar junction transistor offers a maximum collector current of 1.75A and a low collector-emitter saturation voltage of 1.4V. Designed for through-hole mounting in a PDIP package, it operates across a temperature range of -20°C to 85°C and is RoHS compliant.
PackagePDIP
Current Rating1.5A
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Stmicroelectronics ULN2074B technical specifications.
General
Package/Case
PDIP
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
1.4V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
1.4V
Continuous Collector Current
1.75A
Current Rating
1.5A
Height
5.1mm
Lead Free
Lead Free
Length
20mm
Max Collector Current
1.75A
Max Input Voltage
30V
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Voltage
50V
Max Power Dissipation
1W
Mount
Through Hole
Number of Channels
4
Number of Elements
4
Output Current
1.5A
Output Voltage
50V
Package Quantity
25
Packaging
Rail/Tube
Polarity
NPN
Power Dissipation
4.3W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
50V
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ULN2074B Datasheet
Download the complete datasheet for Stmicroelectronics ULN2074B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

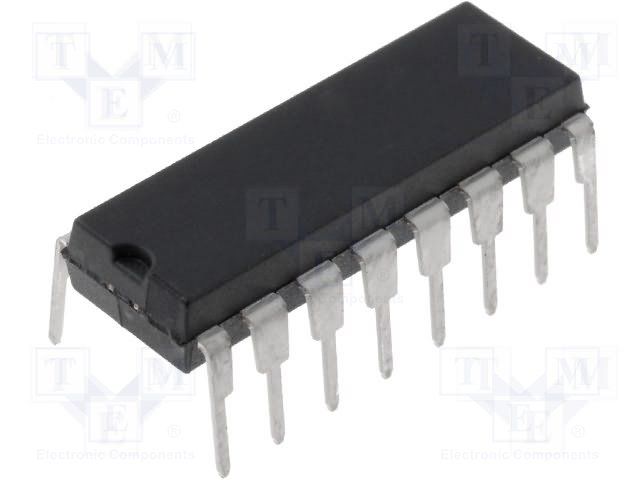

Product Images
