Fixed frequency off-line converter with a 4.5V output voltage and 3A output current. Features a maximum input voltage of 230V AC and a maximum power dissipation of 82W. Operates within a temperature range of -25°C to 125°C with a maximum duty cycle of 12%. This through-hole mounted integrated circuit offers a fall time of 100ns and is RoHS compliant.
MountingThrough Hole
Power82W
Quick Jump:
Technical Specifications
Stmicroelectronics VIPER100A-E technical specifications.
General
Fall Time
100ns
Height
9.2mm
Lead Free
Lead Free
Length
10.4mm
Max Duty Cycle
12%
Max Input Voltage (AC)
230V
Max Input Voltage
230V
Max Operating Temperature
125°C
Min Operating Temperature
25°C
Max Power Dissipation
82W
Max Supply Current
16mA
Max Supply Voltage
15V
Min Supply Voltage
0V
Mount
Through Hole
Number of Outputs
1
Operating Supply Current
12mA
Output Current
3A
Output Voltage
4.5V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
82W
Quiescent Current
12mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VIPER™
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics VIPER100A-E Datasheet
Download the complete datasheet for Stmicroelectronics VIPER100A-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

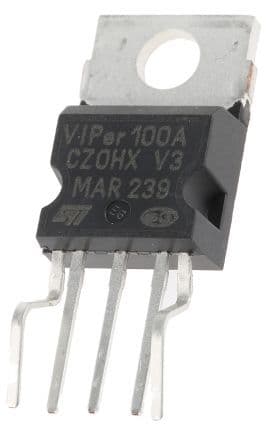

Product Images
