Surface mount current limit switch featuring four output channels, each capable of 700mA output current. Operates with a supply voltage range of 10V to 36V, providing up to 45V output voltage. Offers a maximum output current of 4A and an on-state resistance of 200mR. Packaged in a 12-pin SOIC case, this RoHS compliant component is designed for operation between -40°C and 125°C.
PackageSOIC
Voltage45V
Current700mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics VN330SP-E technical specifications.
General
| Package/Case | SOIC |
| Current | 700mA |
| Height | 3.65mm |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 10V |
| Mount | Surface Mount |
| Number of Outputs | 4 |
| On-State Resistance | 200mR |
| On-state Resistance-Max | 320mR |
| Output Current | 700mA |
| Output Current per Channel | 700mA |
| Output Voltage | 45V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Rated Current-Max | 4A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Voltage | 45V |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics VN330SP-E Datasheet
Download the complete datasheet for Stmicroelectronics VN330SP-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

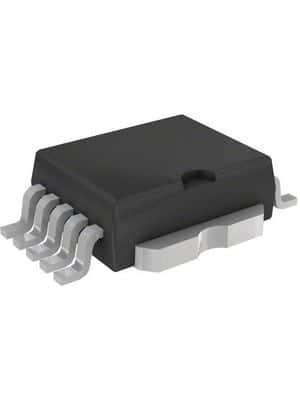

Product Images
