Automotive high-side current limit switch with 1 channel, 1 output, and a maximum output current of 43A. Features over-voltage and over-temperature fault protection, with an on/off interface. Operates within a nominal input voltage range of 36V and supports an output voltage up to 58V. Packaged in a TO-263-7 (HPAK) case, this RoHS compliant component is supplied on tape and reel.
PackageTO-263-7
Quick Jump:
Technical Specifications
Stmicroelectronics VN5T016AHTR-E technical specifications.
General
| Package/Case | TO-263-7 |
| Fault Protection | Over Voltage, Over Temperature |
| Interface | On/Off |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 43A |
| Nominal Input Voltage | 36V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Voltage | 58V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | VIPower™ |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics VN5T016AHTR-E Datasheet
Download the complete datasheet for Stmicroelectronics VN5T016AHTR-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

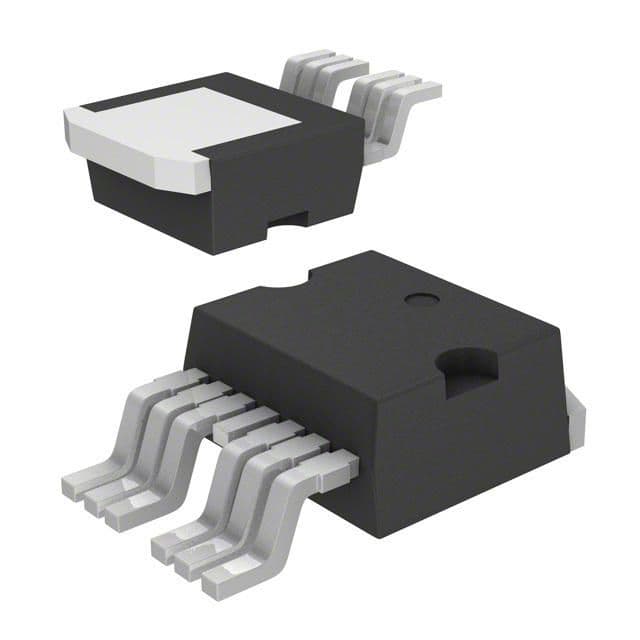

Product Images
