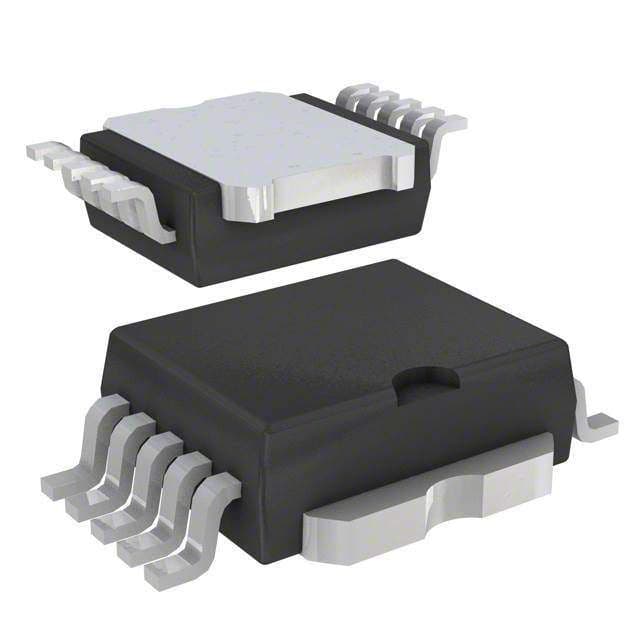

The VN610SP13TR is a high side driver from Stmicroelectronics with a maximum output current of 45A and an operating supply voltage of 36V. It features a drain to source resistance of 35mR and a maximum power dissipation of 139W. The device is designed for surface mount applications and has a maximum operating temperature of 150°C. It is RoHS compliant and available in a SO-10 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics VN610SP13TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Drain to Source Resistance | 35mR |
| Fault Protection | Over Voltage, Over Temperature |
| Interface | On/Off |
| Max Input Voltage | 36V |
| Min Input Voltage | 5.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 45A |
| Max Power Dissipation | 139W |
| Max Supply Current | 10uA |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 36V |
| Output Configuration | High Side |
| Output Current | 45A |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Power Dissipation | 139W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | VIPower™ |
| Supply Current | 10uA |
| RoHS | Compliant |
