High-side solid-state relay with single channel output, capable of 45A maximum output current. Features over-voltage and over-temperature fault protection. Operates with a supply voltage range of 5.5V to 36V, nominal input voltage of 13V, and offers a low 10mR on-state resistance. Maximum power dissipation is 139W, with an operating temperature range of -40°C to 150°C. Surface mount package, RoHS compliant, and supplied on tape and reel.
Current10uA
Resistance10mR
MountingSurface Mount
Power139W
Quick Jump:
Technical Specifications
Stmicroelectronics VN610SPTR-E technical specifications.
General
| Fault Protection | Over Voltage, Over Temperature |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 45A |
| Max Power Dissipation | 139W |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Nominal Input Voltage | 13V |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 10mR |
| Operating Supply Voltage | 13V |
| Output Configuration | High Side |
| Output Current | 45A |
| Output Current per Channel | 45A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 139W |
| Radiation Hardening | No |
| Resistance | 10mR |
| RoHS Compliant | Yes |
| Series | VIPower™ |
| Supply Current | 10uA |
| Turn-Off Delay Time | 50us |
| Turn-On Delay Time | 50us |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics VN610SPTR-E Datasheet
Download the complete datasheet for Stmicroelectronics VN610SPTR-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

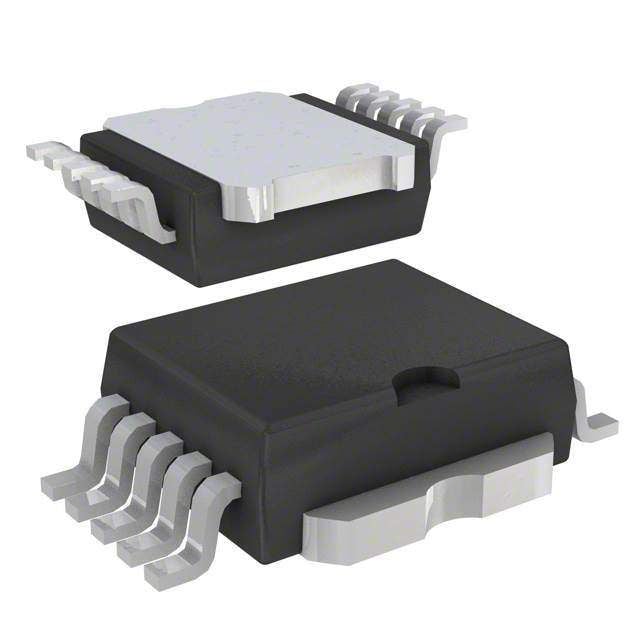

Product Images
